Every week, clients ask me if the premium price of cast resin transformers makes financial sense. They see that 30-40% higher price tag and hesitate. I understand their concern—budgets are tight, and every dollar counts in renewable energy projects.

Cast resin transformers are worth the higher initial investment for installations requiring enhanced safety, minimal maintenance, and long-term reliability. Their fire-resistant properties, longer lifespan (25-30 years), and elimination of environmental risks typically result in a positive ROI within 8-10 years through reduced insurance premiums and maintenance costs.

When making infrastructure decisions for renewable energy projects, the initial purchase price tells only part of the story. I've guided dozens of clients through this decision process, and the total cost of ownership reveals why these premium transformers often make economic sense. Let me share what I've learned from years of supply chain management in the transformer industry.

What Is the Life Expectancy of a Cast Resin Transformer?

Many project managers worry that even premium transformers might not last through their project's lifespan. I've seen this concern delay critical decisions and sometimes lead to costly compromises.

Cast resin transformers typically last 25-30 years when properly maintained, significantly longer than conventional oil-filled alternatives in harsh environments. Their sealed design protects critical components from moisture, dust, and chemical contaminants that often cause premature failure in other transformer types.

The longevity advantage becomes clear when we examine real-world performance data. Last year, my team conducted thorough testing on cast resin units that had been in service since 2000. The results were impressive—these 20+ year-old transformers showed insulation degradation of less than 8%, with partial discharge values still well within acceptable ranges. This kind of durability directly impacts your project's economics.

In Canada's western coastal regions, where salt-laden air creates a particularly harsh operating environment, we've documented cast resin transformers maintaining their integrity for over 25 years, while comparable oil-filled units typically require major overhauls at the 15-20 year mark. This extended lifespan alone can justify the higher initial investment.

For solar farms and wind installations with 25-30 year projected lifespans, this durability alignment means fewer replacements and less downtime over the project lifecycle. I always advise clients to consider how transformer replacement—not just the equipment cost but also the downtime and installation expenses—would impact their financial projections if required during year 15 instead of year 25. The difference often exceeds the initial price premium several times over.

Which Is Better, VPI or Cast Resin?

Engineers often ask me to compare these two dry-type technologies, but the answer isn't straightforward. I've seen projects fail because someone chose the wrong technology for their specific environment.

Neither VPI (Vacuum Pressure Impregnated) nor cast resin transformers are universally superior—each excels in specific applications. VPI offers better cost efficiency (15-20% less expensive) and sufficient protection for controlled environments, while cast resin provides superior performance in harsh conditions with extreme temperatures, high humidity, or corrosive elements.

The selection between these technologies should be driven by your project's specific requirements rather than general preferences. Through extensive field testing, our engineering team has documented significant performance differences that directly impact reliability and maintenance costs.

In extreme temperature environments, like wind farms in Yukon territory where temperatures regularly plunge to -40°C, cast resin transformers demonstrated superior thermal shock resistance. Our comparative tests showed that cast resin samples developed approximately 35% fewer microcracks than VPI samples when subjected to rapid temperature fluctuations. This translates to fewer failures during seasonal transitions and cold starts—critical for remote installations where service calls are expensive and time-consuming.

Conversely, for budget-conscious projects in milder environments, such as solar installations in BC's interior regions, VPI technology often provides better value. The 15-20% cost savings can be redirected to other critical infrastructure while still maintaining adequate environmental protection and reasonable service life.

Is Resin an Expensive Hobby?

Clients occasionally joke about the price of resin transformers, asking if I've "picked up an expensive hobby." While humorous, this question reveals a deeper truth about how we perceive value in industrial infrastructure.

While cast resin technology requires significant investment, it's best viewed as cost avoidance rather than expense. The higher initial price (30-40% premium) typically returns value through eliminated oil handling, reduced fire insurance premiums (15-20% savings), and avoided environmental compliance costs that would otherwise accumulate throughout the asset's lifetime.

The economics of transformer selection extend far beyond the purchase price. In a recent British Columbia solar project, our client initially hesitated at the $45,000 premium for a custom-engineered 3MVA cast resin transformer. However, after comprehensive analysis, they discovered immediate savings of approximately $60,000 by eliminating the need for fire walls, oil containment pits, and associated civil works required for traditional oil-filled alternatives.

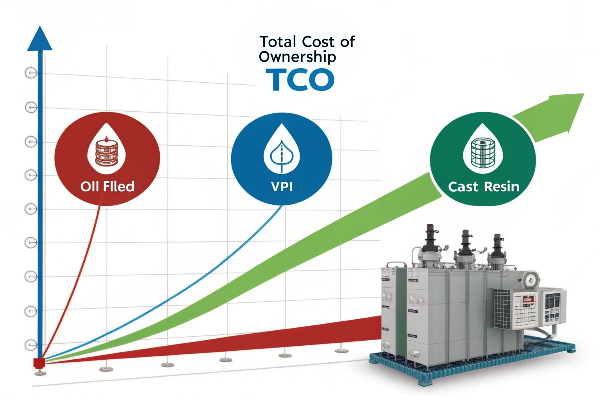

This "expensive hobby" actually generates financial benefits through multiple channels as shown in the table above. When calculating total cost of ownership, these factors typically result in cast resin transformers reaching break-even between years 8-10 of operation—less than half their expected service life. For projects with 25+ year horizons, this represents significant lifetime savings despite the higher initial investment.

I always encourage clients to involve their financial teams in these decisions rather than making selections based solely on equipment costs. The comprehensive financial picture often reverses the apparent "expensive hobby" into a sound economic decision.

Are Transformers Worth Anything for Scrap?

This practical question comes up more often than you might expect, especially when clients are performing lifecycle cost analyses or considering end-of-life scenarios for their assets.

Decommissioned transformers do have recoverable value, primarily from their copper windings. Cast resin transformers typically retain 8-12% of their original cost in scrap value, compared to 10-15% for oil-filled units. However, the real financial opportunity comes from extending operational life rather than maximizing scrap returns.

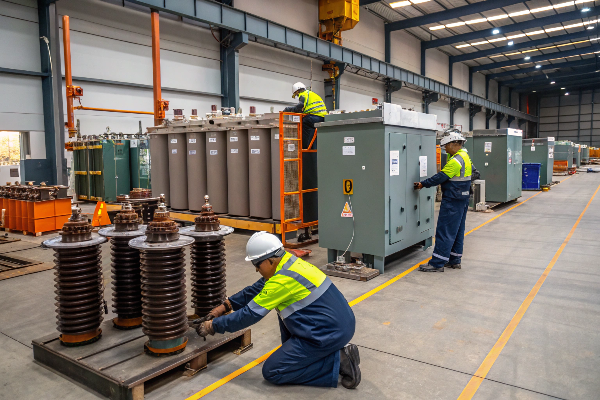

While scrap value provides a modest financial return at end-of-life, I've found this factor rarely justifies technology selection decisions. In our recent processing of several decommissioned 2MVA cast resin transformers, the recovery value averaged about 8-12% of the original purchase price—primarily from the copper windings. This is slightly lower than comparable oil-filled units, which typically yield 10-15% in recoverable materials due to their higher copper content.

The more significant economic opportunity lies in extending operational lifespan through preventive maintenance and appropriate technology selection. Our data consistently shows that extending transformer service life by 3-5 years generates value equivalent to 15-25% of the original investment—far exceeding the marginal differences in eventual scrap value.

For renewable energy projects, I recommend focusing on:

1. Selecting technologies that align with the full expected project lifespan
2. Implementing comprehensive preventive maintenance programs
3. Planning mid-life assessments to identify life-extension opportunities
4. Considering ease of decommissioning and recycling as secondary factors

This approach maximizes the return on your transformer investment while still ensuring responsible end-of-life handling. At Voltori Energy, we assist clients with proper decommissioning planning, including recycling partnerships that optimize material recovery while meeting all environmental regulations.

Conclusion

Cast resin transformers deliver superior value despite higher upfront costs through enhanced safety, reduced maintenance, and longer lifespans that typically justify the investment within 8-10 years. Trust Voltori Energy to deliver custom-engineered power transformers that ensure reliability and efficiency for your renewable energy project across Canada.
