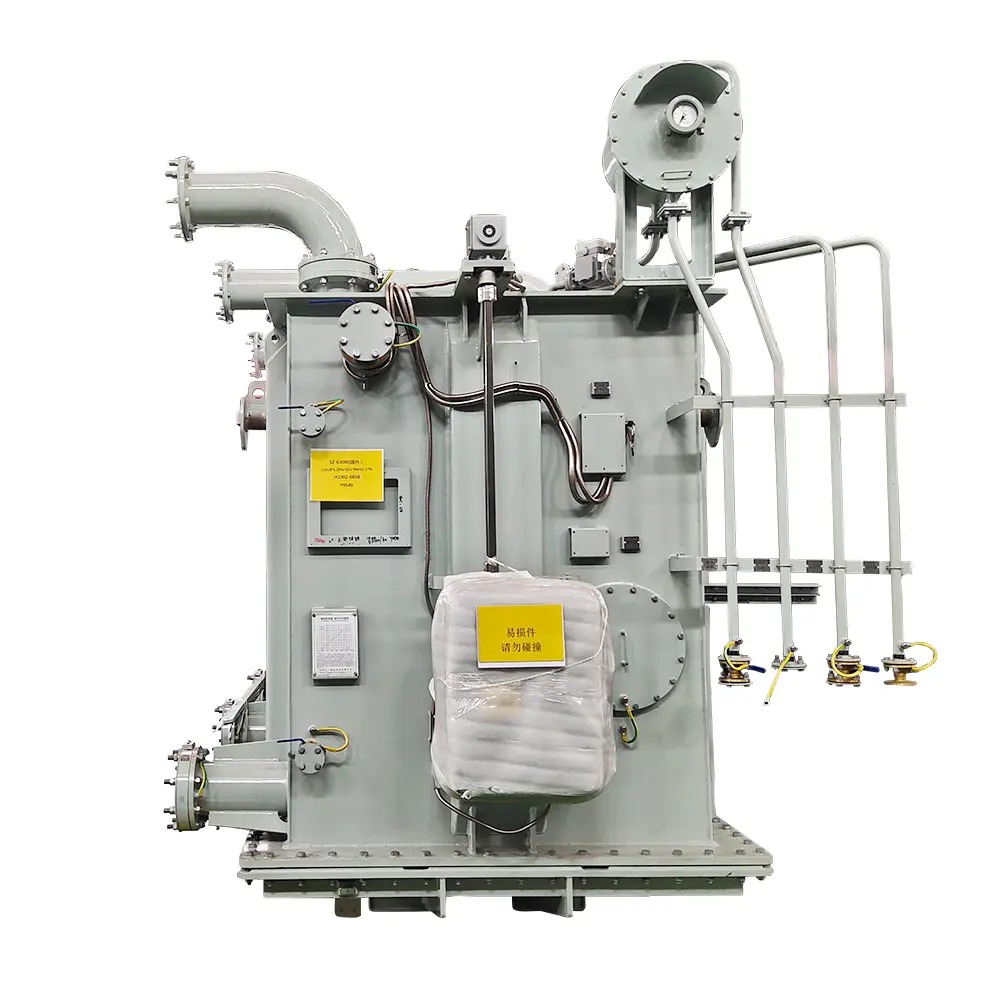

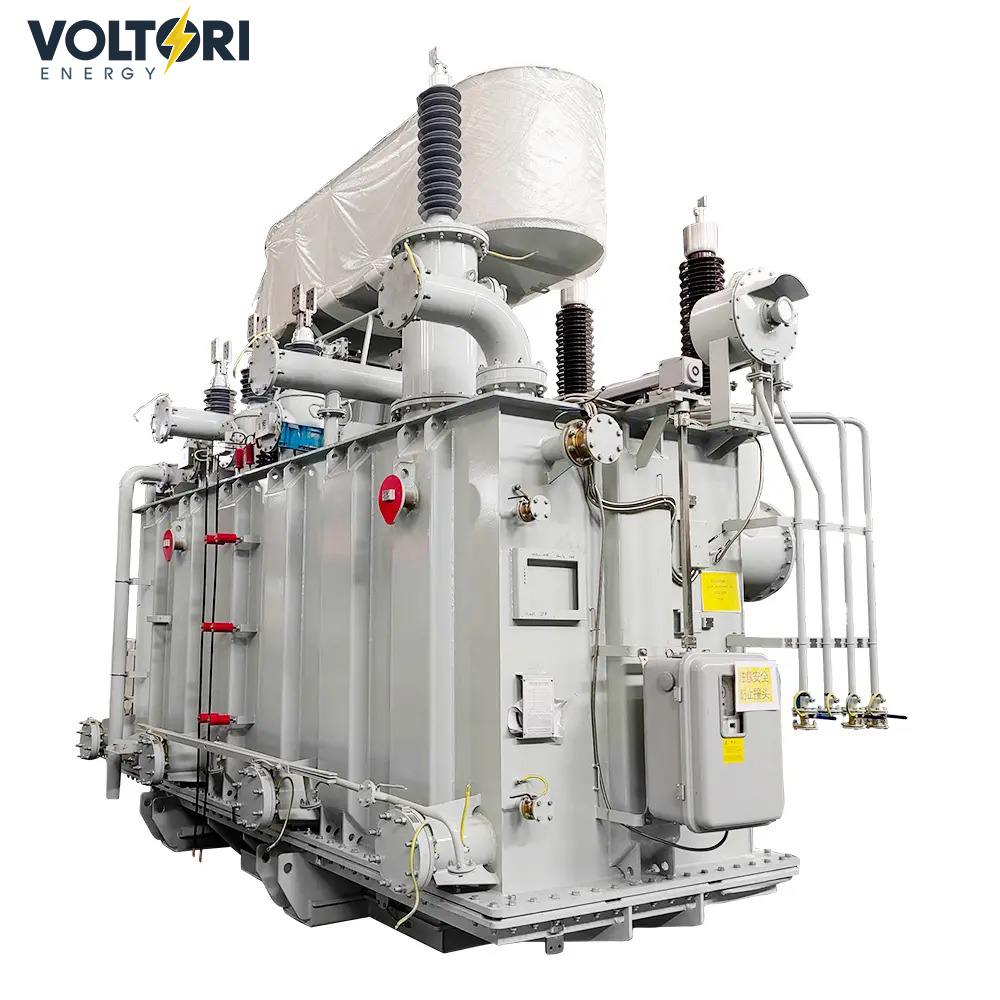

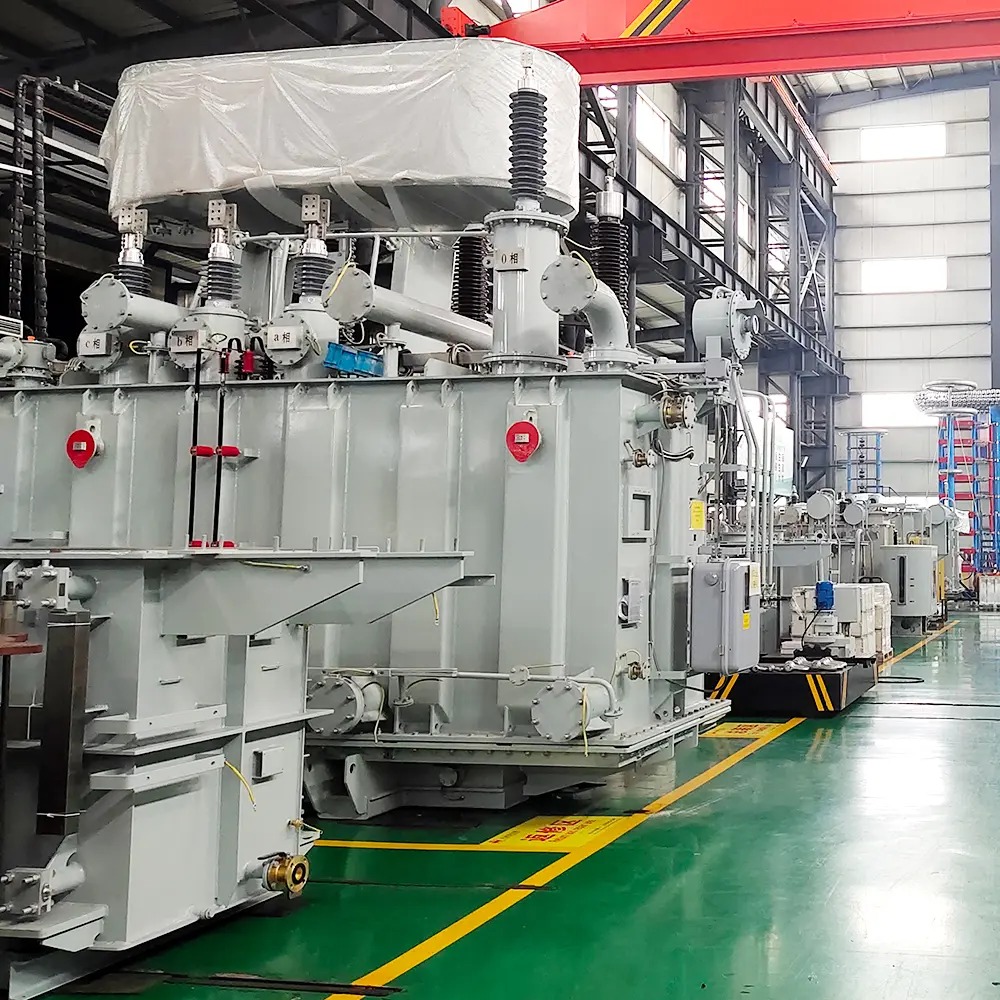

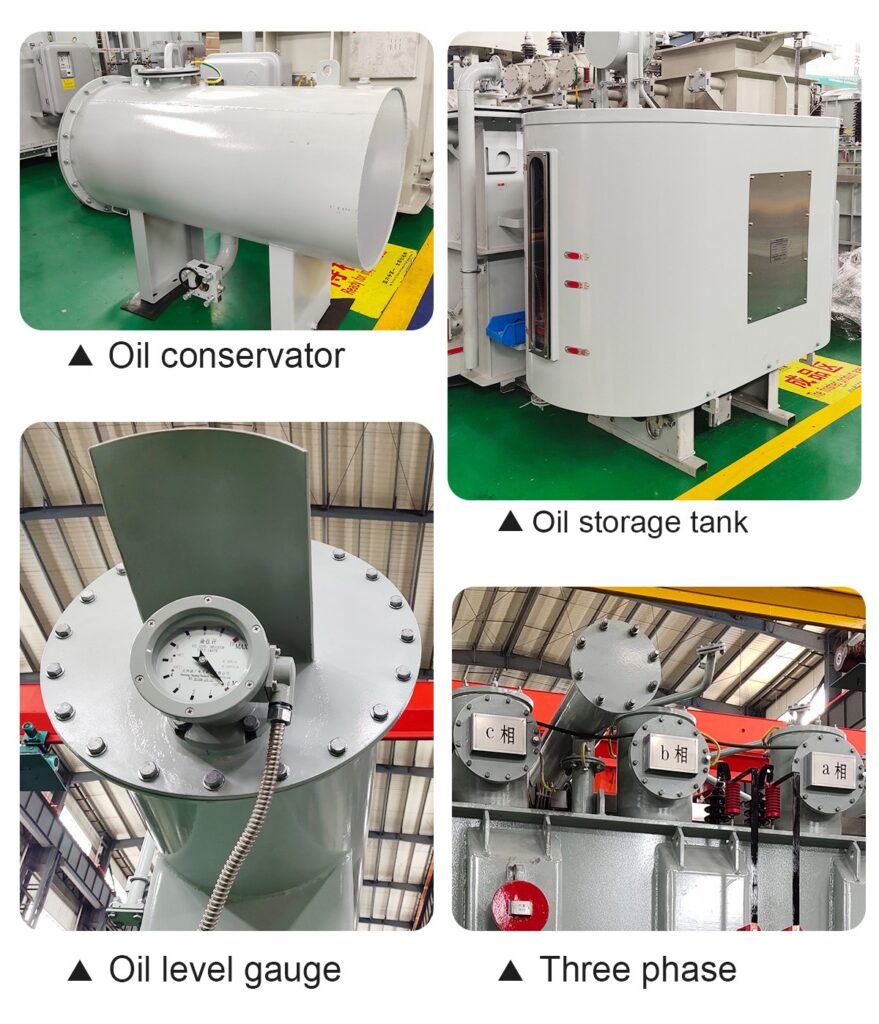

Three Phase High Voltage Power Transformer Up 230kV 60 MVA
Voltori Energy delivers premium Three Phase Power Transformers rated up to 230kV and 60MVA. These high-capacity units feature advanced cooling systems and superior core materials for exceptional efficiency in high-voltage transmission networks. Built to rigorous international standards, our transformers provide outstanding reliability, voltage regulation, and overload capacity. Ideal for major substations and power generation facilities, these transformers include comprehensive monitoring systems and are customizable to meet specific project requirements.
Technical Datasheet for Three Phase High Voltage Power Transformer, 230kV
| Tap | Capacity (MVA) |
High Voltage (kV) |
Low Voltage (kV) |
Connection | Loss (kW) | No Load Current (%) |
|
|---|---|---|---|---|---|---|---|
| No Load | On Load | ||||||
| OL TC |
30 | 230 and more |
66 34.5 24.94 11 6.6 and more |
Dyn1 YNyn0 Dyn11 and more |
30.2 | 129 | 0.69 |
| 37.5 | 35.9 | 148 | 0.63 | ||||
| 50 | 43 | 181 | 0.63 | ||||
| 60 | 50.1 | 210 | 0.57 | ||||
| NL TC |
30 | 28 | 129 | 0.70 | |||
| 37.5 | 32.8 | 148 | 0.70 | ||||
| 50 | 39 | 181 | 0.65 | ||||
| 60 | 45.9 | 210 | 0.65 | ||||
Technical Datasheet for Three Phase High Voltage Power Transformer, 115kV
| Tap | Capacity (MVA) | High Voltage (kV) | Low Voltage (kV) | Connection | Loss (kW) | No Load Current (%) |
|
|---|---|---|---|---|---|---|---|
| No Load | On Load | ||||||
| OL TC |
10 |
161 138 115 110 and more |
66 34.5 24.94 11 6.6 and more |
Dyn1 YNyn0 Dyn11 and more |
11.7 | 51.2 | 0.82 |
| 12 | 13.8 | 59.6 | 0.82 | ||||
| 15 | 16.4 | 73.1 | 0.76 | ||||
| 20 | 19.4 | 88.5 | 0.76 | ||||
| 25 | 22.8 | 105 | 0.69 | ||||
| 30 | 27.5 | 127 | 0.69 | ||||
| 37.5 | 32.8 | 147 | 0.63 | ||||
| 50 | 38.8 | 183 | 0.63 | ||||
| 60 | 46.5 | 220 | 0.57 | ||||
| NL TC |
10 | 10.6 | 51.2 | 0.64 | |||
| 12 | 12.2 | 59.6 | 0.64 | ||||
| 15 | 15.2 | 73.1 | 0.59 | ||||
| 20 | 17.6 | 88.5 | 0.59 | ||||
| 25 | 21.1 | 105 | 0.54 | ||||
| 30 | 25.2 | 127 | 0.54 | ||||
| 37.5 | 29.8 | 147 | 0.56 | ||||
| 50 | 35.4 | 183 | 0.52 | ||||
| 60 | 42.1 | 220 | 0.48 | ||||
Technical Datasheet for Three Phase High Voltage Power Transformer, 66kV
| Tap | Capacity (MVA) | High Voltage (kV) | Low Voltage (kV) | Connection | Loss (kW) | No Load Current (%) |
|
|---|---|---|---|---|---|---|---|
| No Load | On Load | ||||||
| OL TC |
10 | 69 and more |
66 34.5 24.94 11 6.6 and more |
Dyn1 YNyn0 Dyn11 and more |
11.7 | 47.7 | 0.75 |
| 12 | 13.6 | 56.3 | 0.53 | ||||
| 15 | 16.1 | 69.6 | 0.49 | ||||
| 20 | 19.3 | 84.1 | 0.49 | ||||
| 25 | 22.6 | 99.6 | 0.42 | ||||
| 30 | 26.9 | 120.2 | 0.42 | ||||
| 37.5 | 31.9 | 140.1 | 0.39 | ||||
| 50 | 38.5 | 174.1 | 0.39 | ||||
| 60 | 44.6 | 210.1 | 0.39 | ||||
| NL TC |
10 | 10.6 | 47.7 | 0.75 | |||
| 12 | 12.6 | 56.3 | 0.53 | ||||
| 15 | 15.1 | 69.6 | 0.49 | ||||
| 20 | 18.1 | 84.1 | 0.49 | ||||
| 25 | 21.3 | 99.6 | 0.42 | ||||
| 30 | 24.9 | 120.2 | 0.42 | ||||
| 37.5 | 30.2 | 140.1 | 0.39 | ||||
| 50 | 35.6 | 174.1 | 0.39 | ||||
| 60 | 42.4 | 210.1 | 0.39 | ||||
