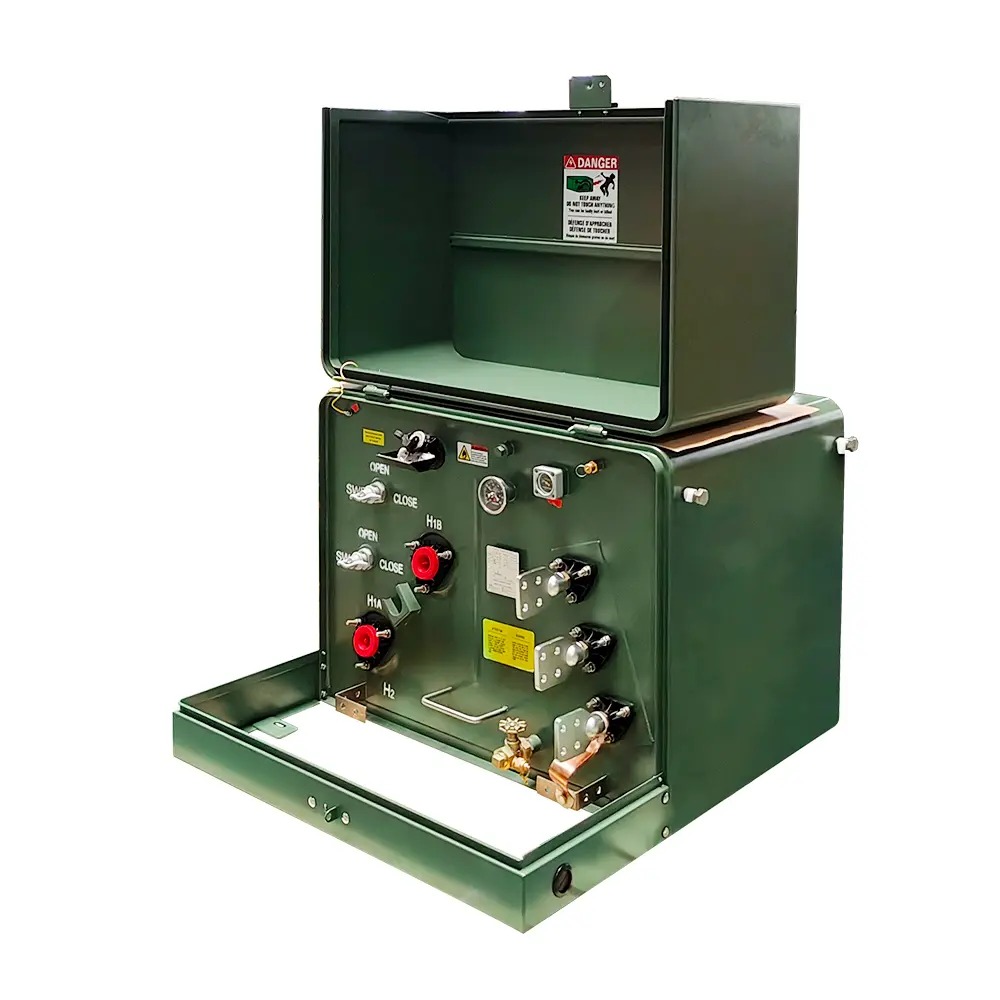

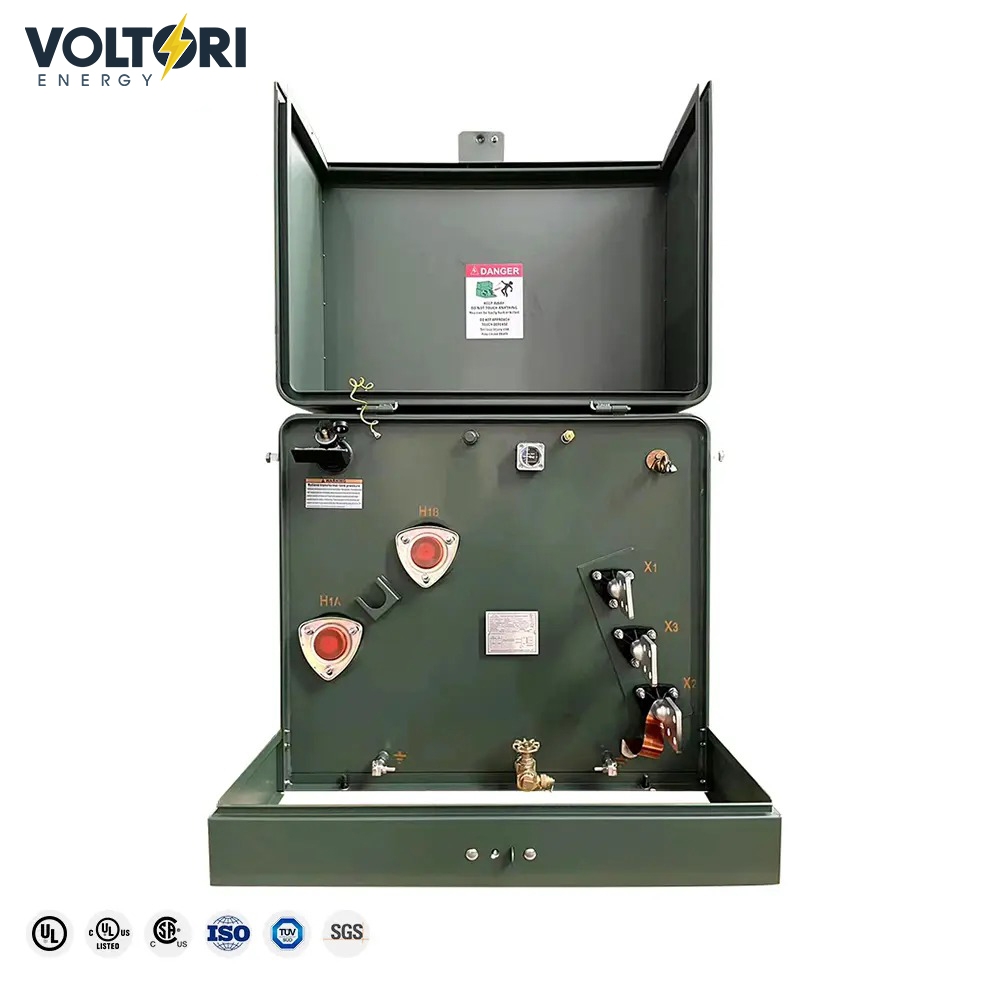

Single Phase Pad Mounted Transformer Up 34.5kV 333 kVA
Voltori Energy offers premium Single Phase Pad Mounted Transformers with voltages up to 34.5kV and capacities up to 333kVA. Our cUL certified units exceed ANSI/IEEE standards and are designed for residential, commercial, and renewable energy applications. With tamper-resistant enclosures and flexible customization options, we provide reliable transformer solutions backed by comprehensive technical support.
Standard Design & Technical Datasheet:
| Capacity (kVA) | High Voltage (V) | Low Voltage (V) | Tap Changer | Loss (W) | Overall Size (MM) | Weight (KG) | ||||
|---|---|---|---|---|---|---|---|---|---|---|

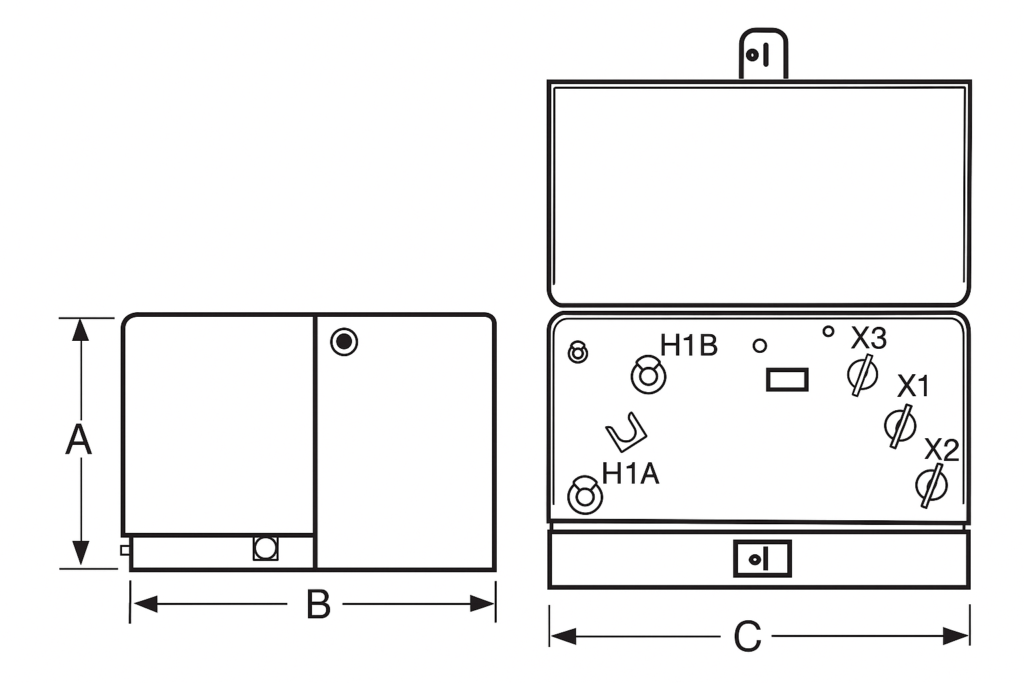

| No Load | On Load | Height (A) | Depth (B) | Width (C) | Oil | Total | ||||
| 10 |
34500/19920
13800/7967 12470/7200 |
120-240
240-480 347-600 and more |
±2×2.5%
±1×5% |
50 | 120 | 610 | 737 | 838 | 35 | 272 |
| 15 | 65 | 195 | 610 | 737 | 838 | 40 | 283 | |||
| 25 | 105 | 290 | 610 | 737 | 838 | 55 | 295 | |||
| 37.5 | 140 | 360 | 610 | 762 | 838 | 68 | 318 | |||
| 50 | 180 | 500 | 610 | 813 | 838 | 90 | 340 | |||
| 75 | 250 | 650 | 610 | 864 | 838 | 110 | 454 | |||
| 100 | 275 | 850 | 762 | 940 | 914 | 140 | 522 | |||
| 167 | 455 | 1410 | 762 | 1194 | 914 | 200 | 748 | |||
