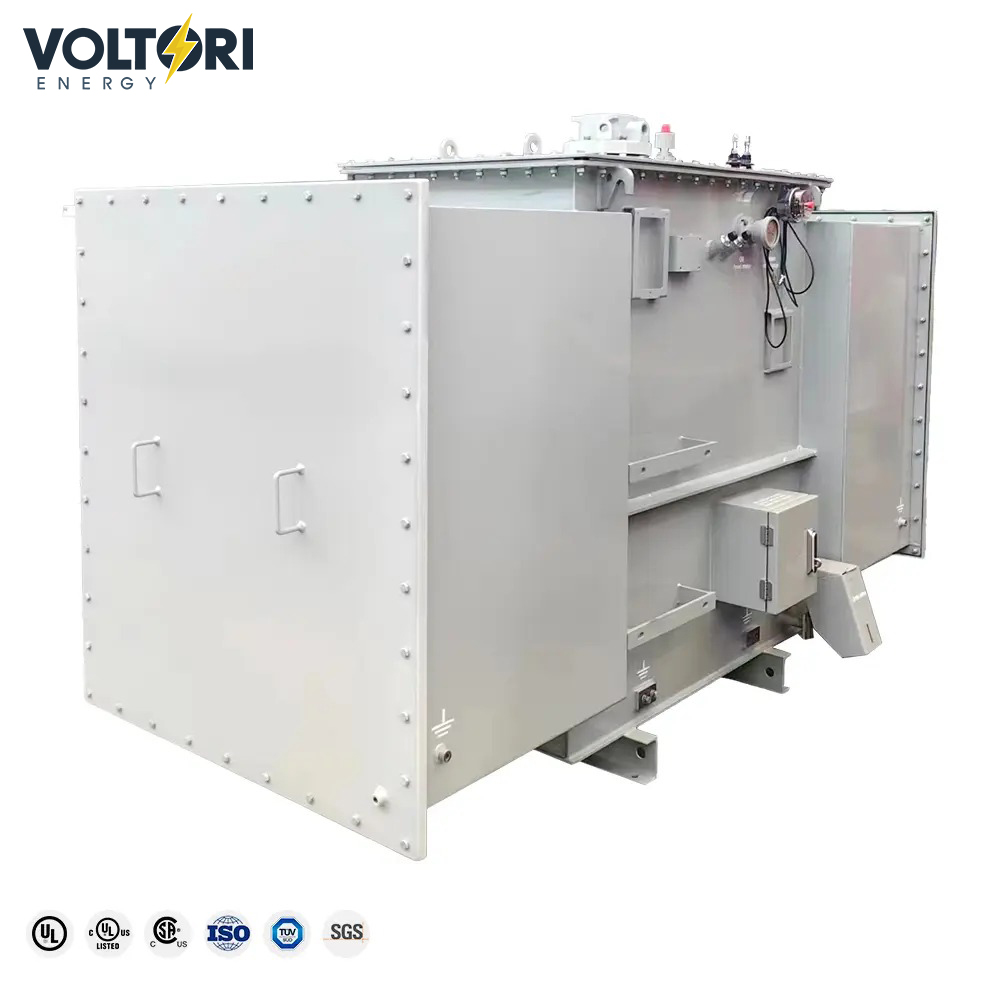

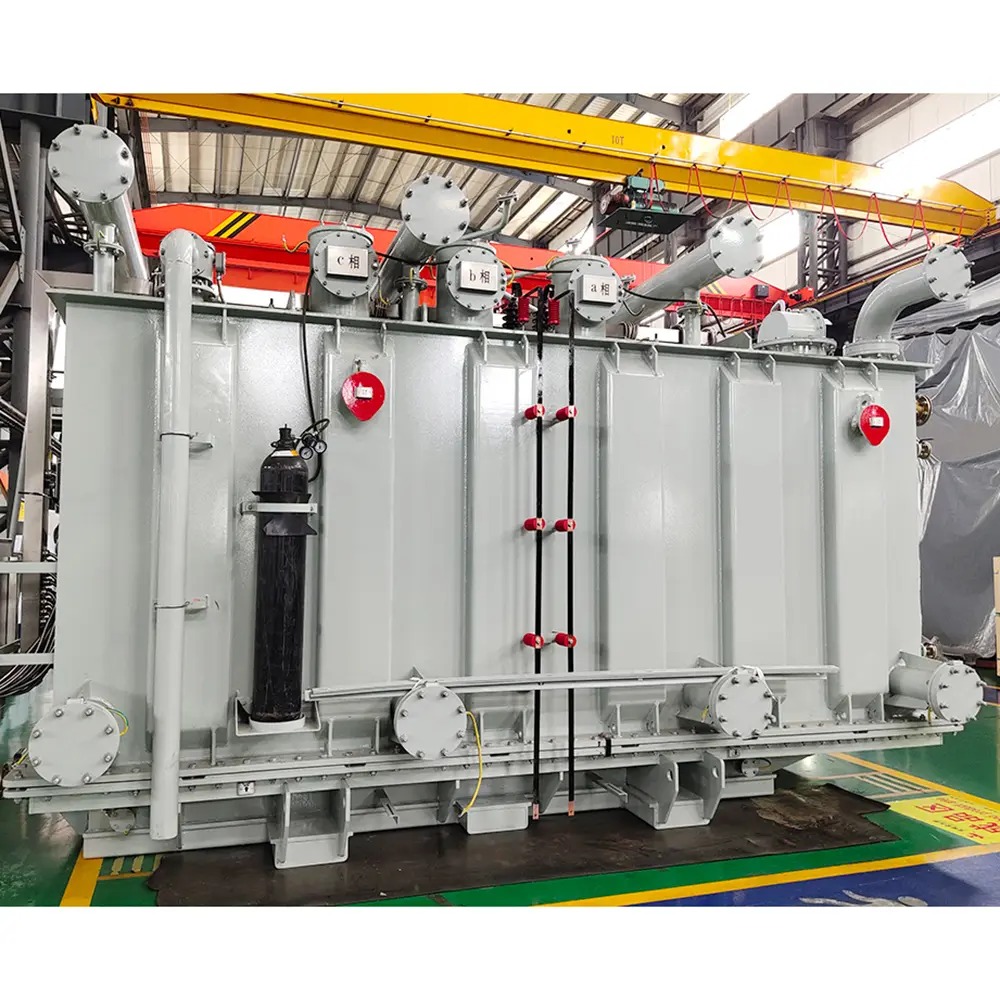

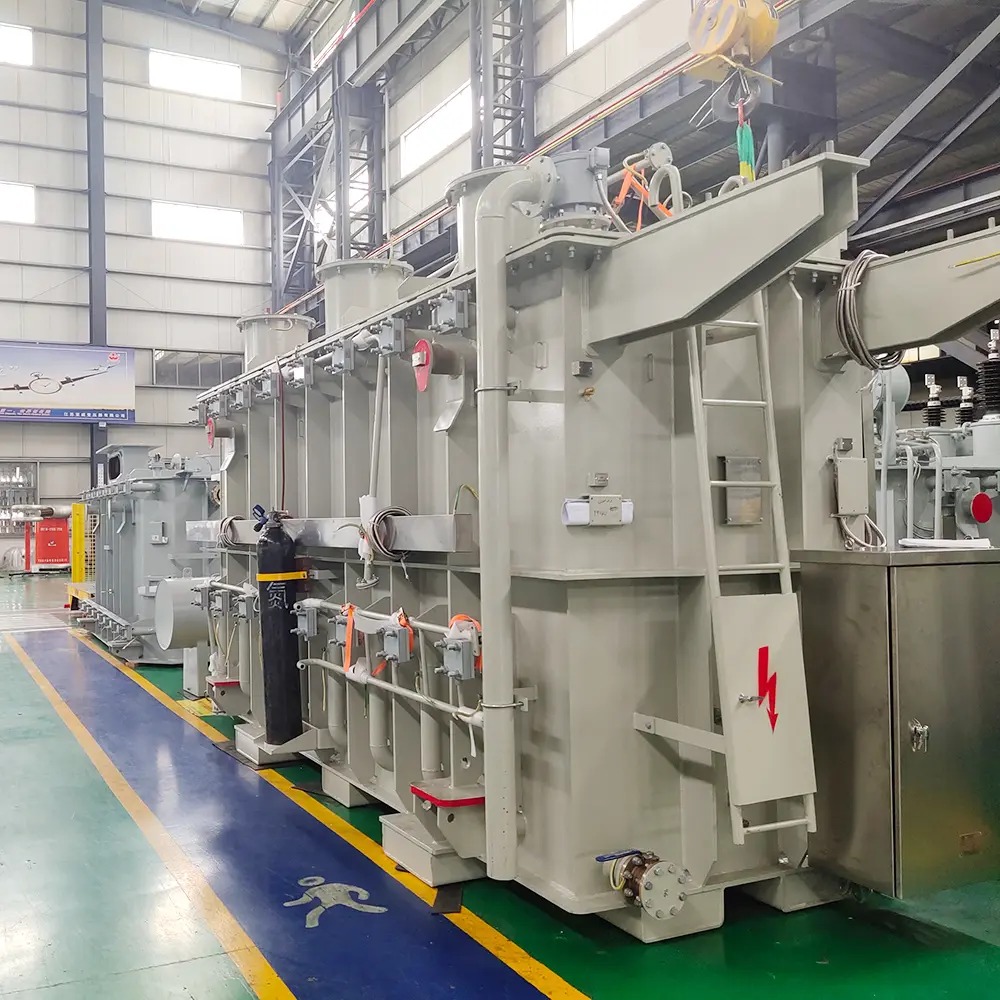

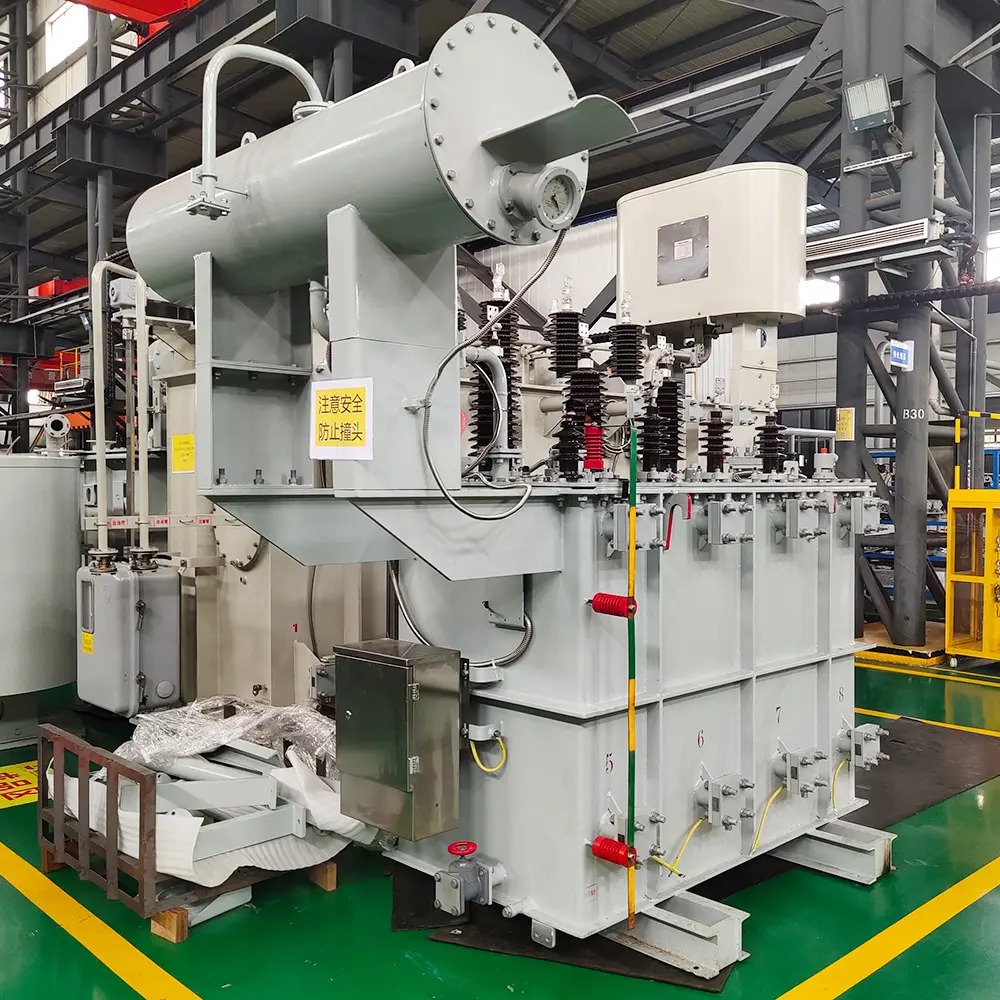

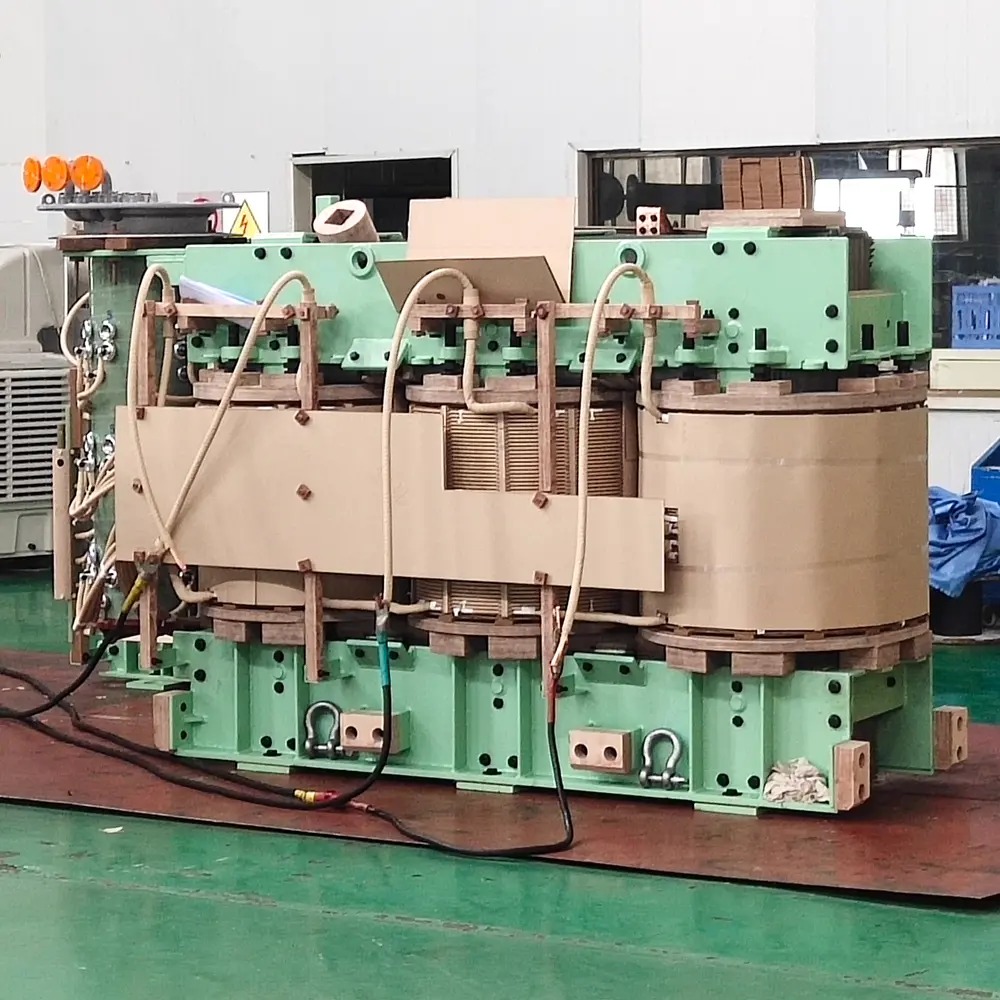

Three Phase Substation Transformer Up 66kV 12 MVA
Voltori Energy offers reliable Three Phase Substation Transformers rated up to 66kV and 12MVA. These units feature efficient cooling systems and low-loss core designs for optimal performance in utility substations and industrial facilities. Built to ANSI/IEEE and IEC standards, our transformers deliver excellent thermal stability with comprehensive monitoring options.
Technical Datasheet for Three Phase Substation Transformer, Oil Immersed
| Capacity (kVA) |
High Voltage (V) |
Low Voltage (V) |
Connection | Tap Changer |
Loss (W) | Overall Size (MM) | Weight (KG) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No Load |
On Load |
Height | Width | Depth | Oil | Total | |||||
| 500 |
66000 44000 41600 34500/19920 24940/14400 13800/7967 13200/7620 12470/7200 and more |
34500/19920 24940/14400 13800/7967 13200/7620 12470/7200 480Y-277 208Y-120 347-600 and more |
Dyn11 YNyn0 Dyn1 Dd0 and more |
±2.5% ±1.5% and more |
580 | 5750 | 1676 | 1625 | 1320 | 848 | 2630 |
| 750 | 870 | 8630 | 1905 | 1727 | 1524 | 980 | 3065 | ||||
| 1000 | 1160 | 11500 | 1905 | 1930 | 1524 | 1166 | 3946 | ||||
| 1500 | 1525 | 16500 | 1905 | 1930 | 2032 | 1272 | 4580 | ||||
| 2000 | 2035 | 18250 | 2159 | 2032 | 2286 | 1458 | 5715 | ||||
| 2500 | 2460 | 19680 | 2159 | 2135 | 2337 | 1510 | 6940 | ||||
| 3000 | 3370 | 20350 | 2159 | 2135 | 3048 | 2094 | 9200 | ||||
| 5000 | 4500 | 27150 | 2515 | 2440 | 3658 | 2783 | 11790 | ||||
| 7500 | 7100 | 32080 | 2515 | 2640 | 3760 | 3498 | 15875 | ||||
| 10000 | 8530 | 35580 | 2515 | 2845 | 3860 | 4611 | 19500 | ||||
| 12000 | 10250 | 42700 | 2515 | 2845 | 4165 | 4903 | 22230 | ||||
